cloud box-凯发k8娱乐旗舰厅

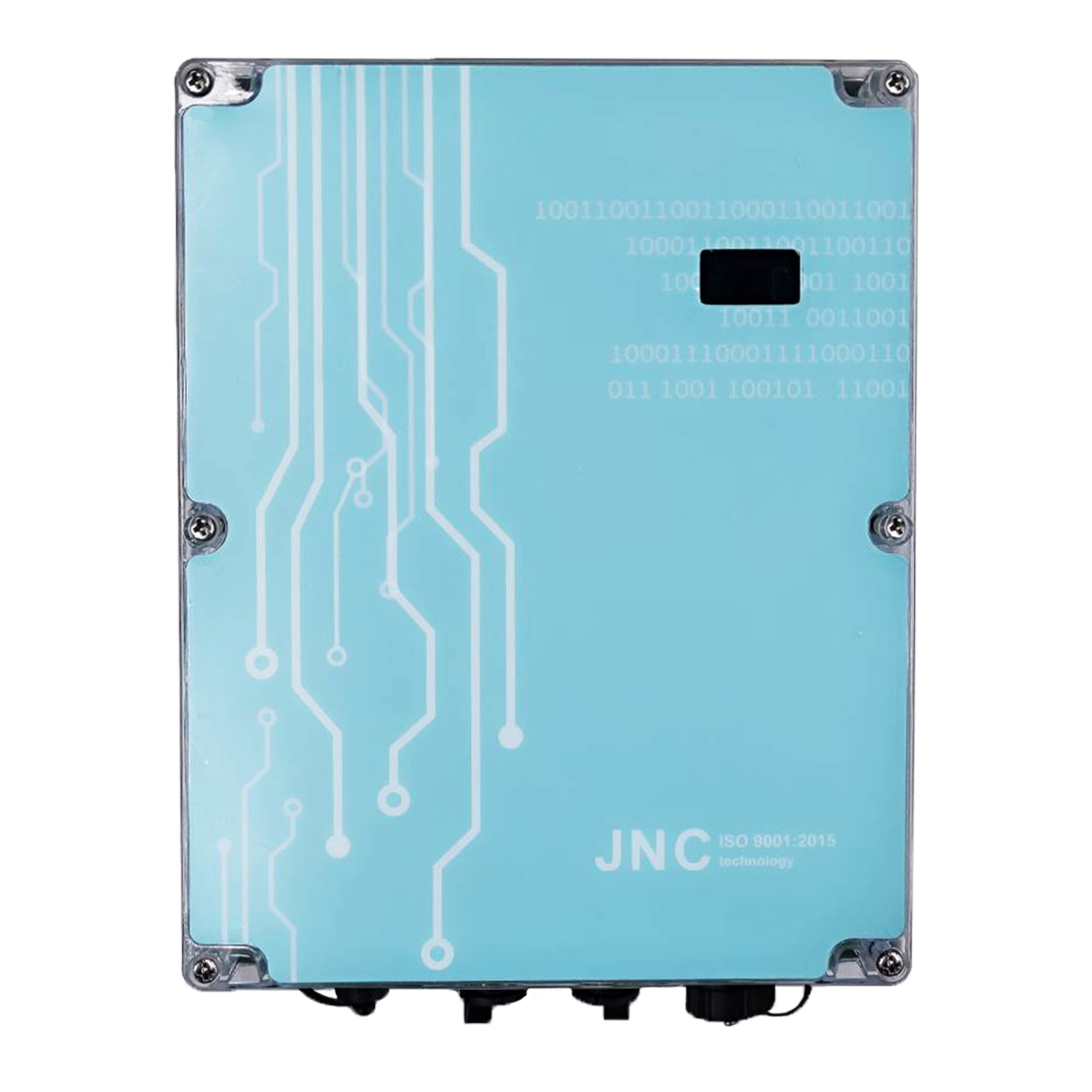

1.ip68 waterproof enclosure is suitable for harsh environment which is moisture-resistant, heat-resistant and shock-resistant
2.provide web service, remote monitoring with browser
3.network interfaces: be equipped with rj-45, 4g(optional), and wi-fi(optional)
4.alarm notify: sms(optional) which is chinese version and outage texting
5.lightweight monitoring device: usb recording/texting/ 4g or nbiot/power saving design
6.with a 0.96-inch color lcd screen, it can display on-site values,usb status and date
7.sleeping mode and setting scheduling
8.applications:environmental monitoring, meteorological monitoring, independent monitoring station,"
2.provide web service, remote monitoring with browser
3.network interfaces: be equipped with rj-45, 4g(optional), and wi-fi(optional)
4.alarm notify: sms(optional) which is chinese version and outage texting
5.lightweight monitoring device: usb recording/texting/ 4g or nbiot/power saving design
6.with a 0.96-inch color lcd screen, it can display on-site values,usb status and date
7.sleeping mode and setting scheduling
8.applications:environmental monitoring, meteorological monitoring, independent monitoring station,"
(1)power:adapte:input:ac 100-240v、output:dc 12v maximum 2a curr/equipment:dc12～36v 、power consumption:6.2w
(2)environmen:operating tem:-20~70°c、0 ~ 95%rh non-condensing (wifi 0~70°c)/storage tem:-30~70°c
(3)communicatio:ethernet interfac:rj-45 ethernet with web service, modbus t/
communication interface:rs-485 x2 sets，master and slave can be modified free/
communications protoco:modbus rtu／ mqtt／https/
wireless communication:4g / nbiot / wifi
(4)signal inpu:analog input points (ai*1, 4-20ma) / digital input points (di*2,it can do counting 200h
(5)signal output:the points of digital output (do*1, 24v 1a it needs to connect to relay)
(6)display pane:0.96 inch, tft-lcd
(7)physical condition:dimension ( mm ):252 x 175 x 60 (w× h× d)/weigh:<0.7kg
(8)housing:materia:pc anti-uv/ingress protection ratin:ip68
(9)record:usb flash drive record，maximum to 64g
