iot underwater camera-凯发k8娱乐旗舰厅
1.2 million pixels, 1/2.8” cmos sensor

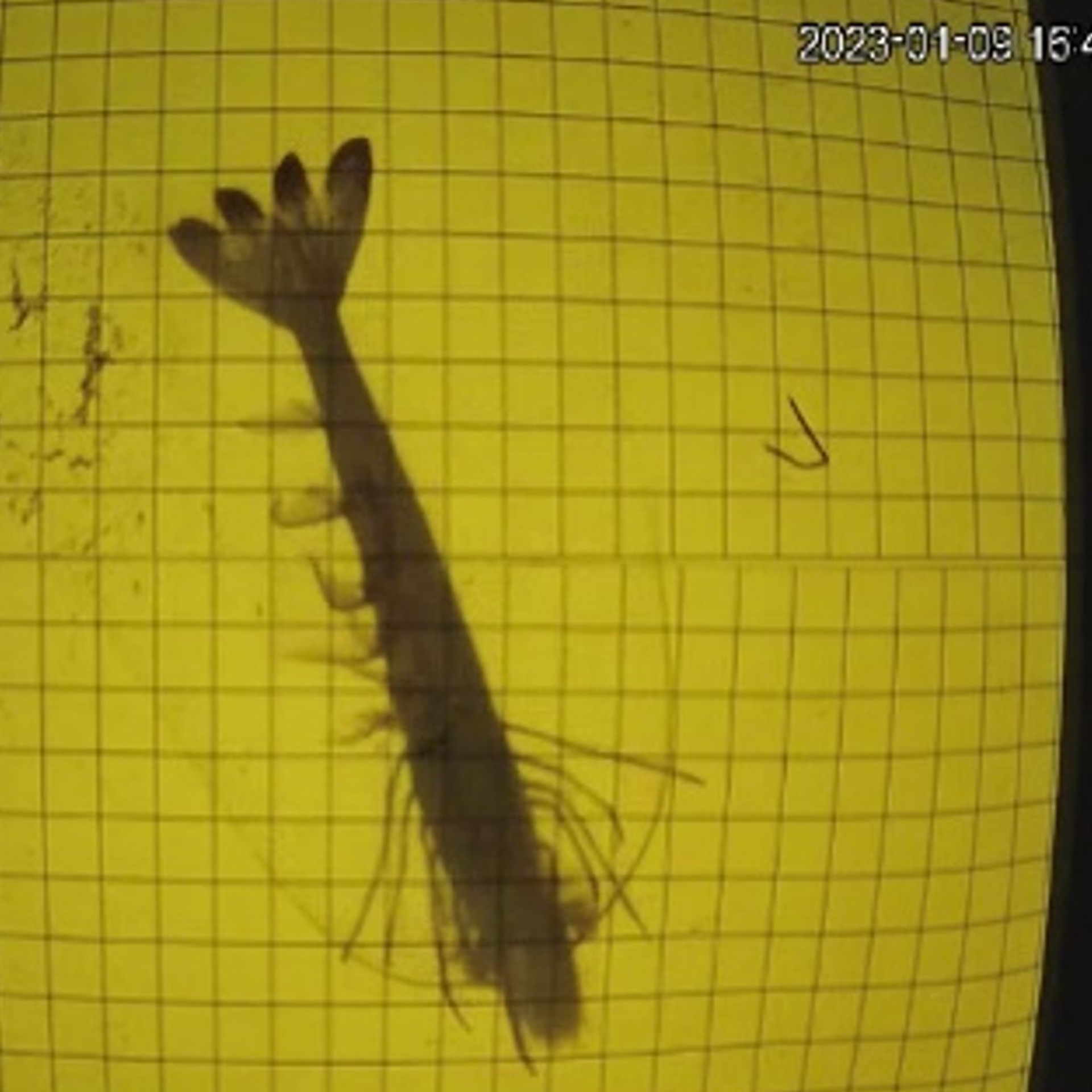

2. resolution 1920*1080。
3. clear and high-quality color images, automatic switching between day and night.
4.the 4g host complies with b1, b3, b7, b8, b20, b28 and other communication frequency bands
5.can be directly displayed on the platform webpage.
6.when there is an abnormal event, automatically collect the trend graph and image, and the image can be called back
7.the brightness of the light bar can be adjusted according to the needs of the site
8.comply with rtsp and rtmp communication methods, and the image output is not limited。
2. resolution 1920*1080。
3. clear and high-quality color images, automatic switching between day and night.
4.the 4g host complies with b1, b3, b7, b8, b20, b28 and other communication frequency bands
5.can be directly displayed on the platform webpage.
6.when there is an abnormal event, automatically collect the trend graph and image, and the image can be called back
7.the brightness of the light bar can be adjusted according to the needs of the site
8.comply with rtsp and rtmp communication methods, and the image output is not limited。

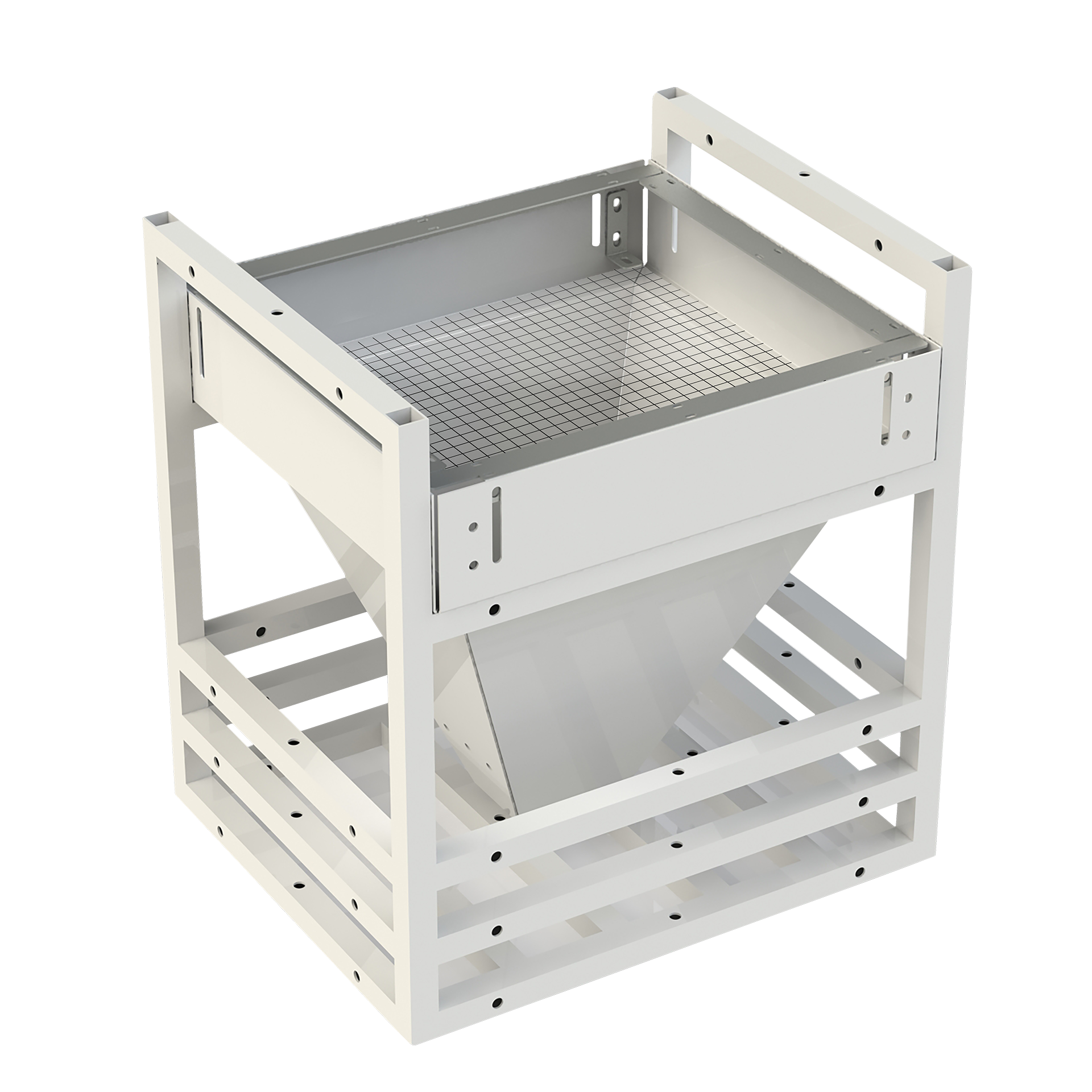

underwater camera specification:
(1)power:12vdc(2)power consumption:<4.9 w(3)dimension(mm):507x 424.86x 550(wxhxd)
(4)weight:<25公斤(5)shell material:stainless steel(6)installation method:submersibl
(7)visible range:390×360mm
video specification:
(1)photosensitive element:1/2.8"cmos(2)effective pixels:1920(h) x 1080(v)
(3)electronic shutter:automatic / manual，1/3s~1/100,000
(4)minimum illuminati:0.002lux @ f1.6(5)snr:>56db
(6)close focal length:0.6m(7)angle of view:106°(h) x 56°(v) x 126°(d)
(8)photography range:horizontal: 0 ̊~360 ̊, vertical: 0 ̊~90 ̊, rotation: 0 ̊~360 ̊
